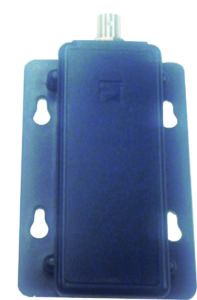

Ultra Long Range Receiver : 2R2000

The Receivers plug directly into almost any access control system using the international standard Wiegand, or connects to third party systems using standard ASCII RS232.

The 2R2000 Receiver detects and decodes RF transmitted signals from the Protrac iD range of tags. The Receivers plug directly into almost any access control system using the international standard Wiegand, or connects to third party systems using standard ASCII RS232.

In a multi-reader network readers interconnect using RS422. Readers are set up using Protrac Utility software. AssetTrac is a full monitoring system available for the receivers.

Features:

• Selectable baud rate between 9600, 19200, 38400, 57600 and 115200 baud
• Selectable manual or automatic polling
• Adjustable range
• RS422 multi-drop interconnection in network mode
• 26 bit Wiegand output for direct plug-in connection to most access control systems
• Adjustable multi-tag buffering for use with access control systems
• RS232 output providing 5,8 and 10 bit tag number for use by client ASCII based systems
• Remote receivers are powered via CAT5 cable
• Receiver status indication by LEDs at RJ45 connectors
• Plug-in PC application for field programming and adjustments
